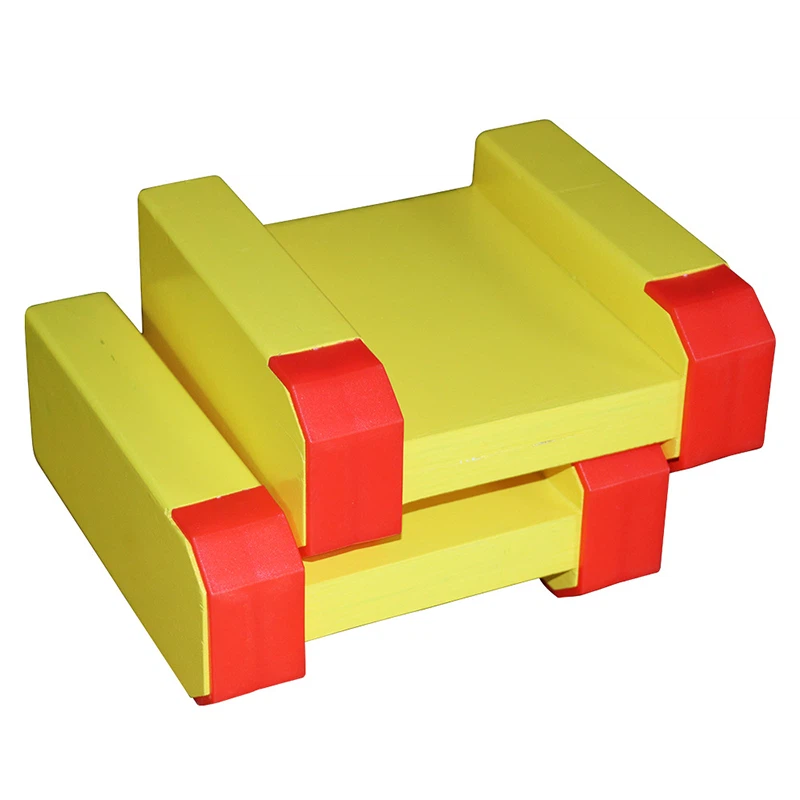

H20 Timber Beam

Construction Timber Beam H20 Wood Beam For Concrete Formwork.

Product Advantages

1.High stiffness ,light weight,strong load-carrying capability
2.Reduction of props quantity ,enlargement of the span between props and working spaces 3.Simple assembly and disassembly ,flexible application,easy operation on site
3.All connectors with high standardization ,strong generality and fast operation 5.Low cost ,high durability.

product-754-735

FAQ

Q: Are you manufacturer or trading company?

A: We're Manufacturing & Trading Combo,With superior quality products and competitive price,we sincerely hope to develop mutual-beneficial business with our customers all over the world.

Q: Could you offer samples for testing market firstly?

A: Yes, samples order is welcome.

Q: What kinds of payment do you accept?

A: Currently we accept TT,L/C.
1.Please send enquiry and advise your requirement.
2.We will make offer to you with your requirement,Invoice will be sent if the price and other details confirmed.
3.Make down payment(or full payment),then we will arrange the production.
4.We will help to take photos,make relevant documents,keep track of the shipping until they reach you safely.

Product Specification

Type	concrete formwork
Product name	H20 timber beam
Flange Material	European spruce wood
Web:material	27mm plywood
Standard	EN13377:2002
Weight	4.8kgs/m
MOQ	1x20GP
Package	pallet
Standard Size	20cm(height)8cm(width)4cm(flange thickness)*27mm(web thickness)
Length	from 1m to 6m
Material	Flange :spruce wood , Web:poplar plywood
Surface Treatment	antispetic & water-proof yellow painting
Weight	4.8kgs/m
Other size	H12,H16
Shear Resistance	37.22KN
Bending Resistance	19.77KN
Bearing Resistance	63.3KN
Bending Stiffness	46KNm²
